R2 SPECIAL TOOLS FOR RIVIAN CERTIFIED COLLISION NETWORK

Rivian Tool ID Tool Name Function Supplier Vehicle System Notes Image
TSN00546-900-C Field Upgrade Kit – Axle Press Upgrade kit to configure existing Rev-B axle press tools for Rev-C compatibility. Only required for upgrading a TSN00546-300-B. Shipped by Rivian (April 2026) to shops that purchased a TSN00546-300-B 18 – Suspension Required for upgrading TSN00546-300-B axle press to work with R2. Rivian automatically shipped this to shops that purchased the TSN00546-300-B from Snap-on Business Solutions. Does not work with TSN00546-300-A. Not required for TSN00546-300-C. TSN00546-900-C

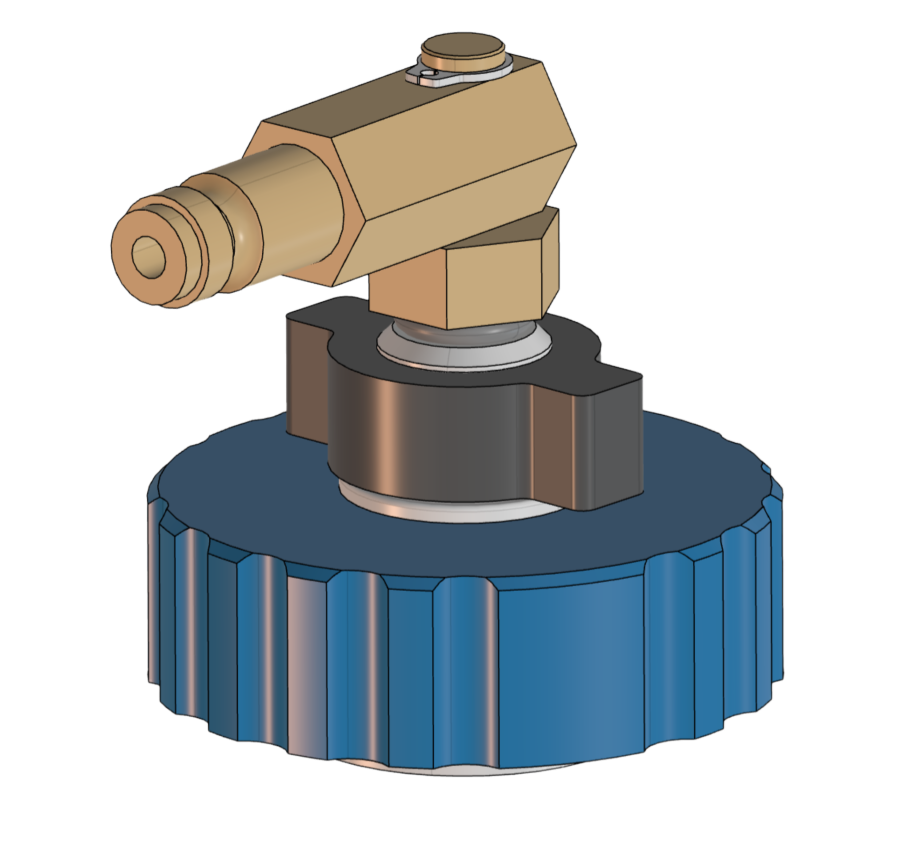

TSN01621-300-A Brake Bleed Adapter – 50mm Used when bleeding R2 vehicles with 50mm reservoir neck Snap-on Business Solutions 14 – Brakes Required TSN01621-300-A

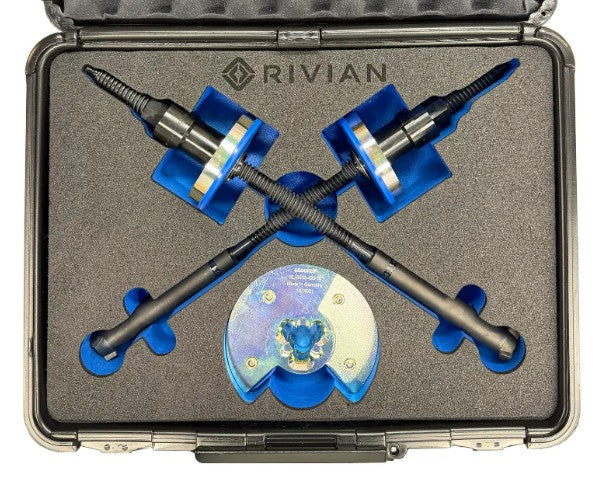

TSN01474-300-A Coil Spring Compressor, Kit of 2 Compress coil spring on MSP (kit of 2) Palmac Tool Company 18 – Suspension Required TSN01474-300-A

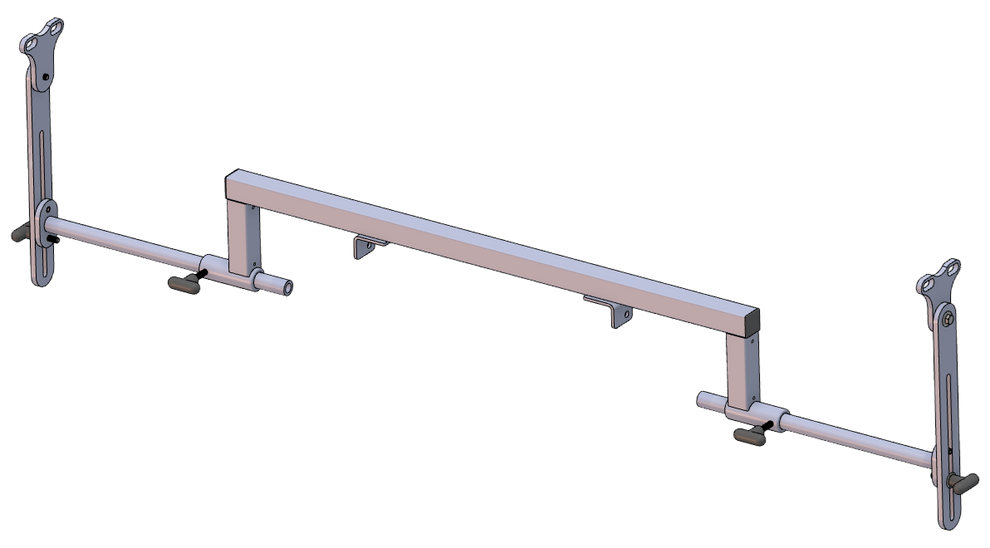

TSN01683-300-A Front Hub Support Tool Support R2 front suspension during subframe removal Snap-on Business Solutions 18 – Suspension Required TSN01683-300-A

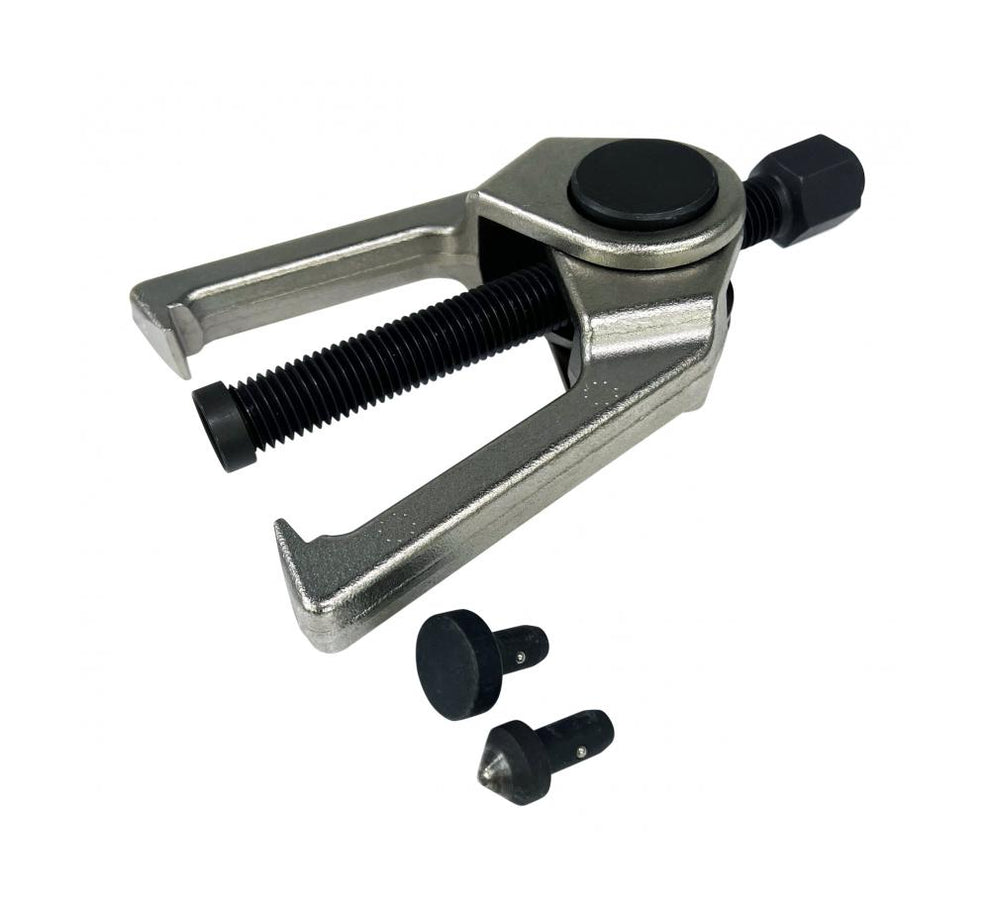

TSN01735-100-A Heavy Duty Tie Rod and Ball Joint Remover Extended throat ball joint separator used with R2 OTC Tools 18 – Suspension Recommended TSN01735-100-A

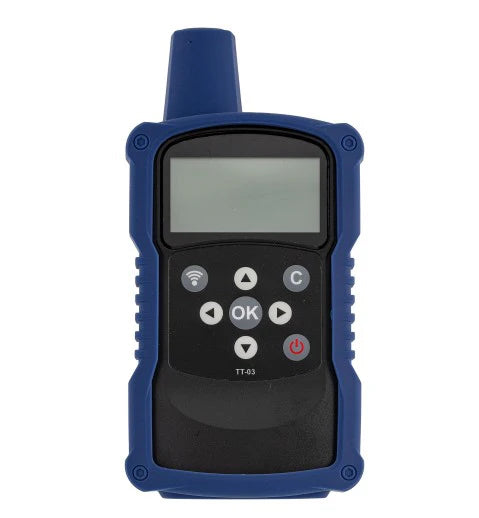

TSN01639-100-A Bluetooth TPMS Wake Tool Used to wake and pair Bluetooth TPMS sensors on R2 vehicles Available soon through Rivian Parts Catalog 22 – Wheels and Tires Required TSN01639-100-A
TSN00787-900-D Coolant Evac & Fill, Field Upgrade Kit Updated kit for R2 components. Upgrades a TSN00787-300-C (or earlier) coolant evac & fill kit to the -D version to work with R2. Snap-on Business Solutions 26 – Thermal Management Required when upgrading an existing coolant evac & fill kit (TSN00787-300-A through C revision). This component set comes standard with TSN00787-300-D. TSN00787-900-D

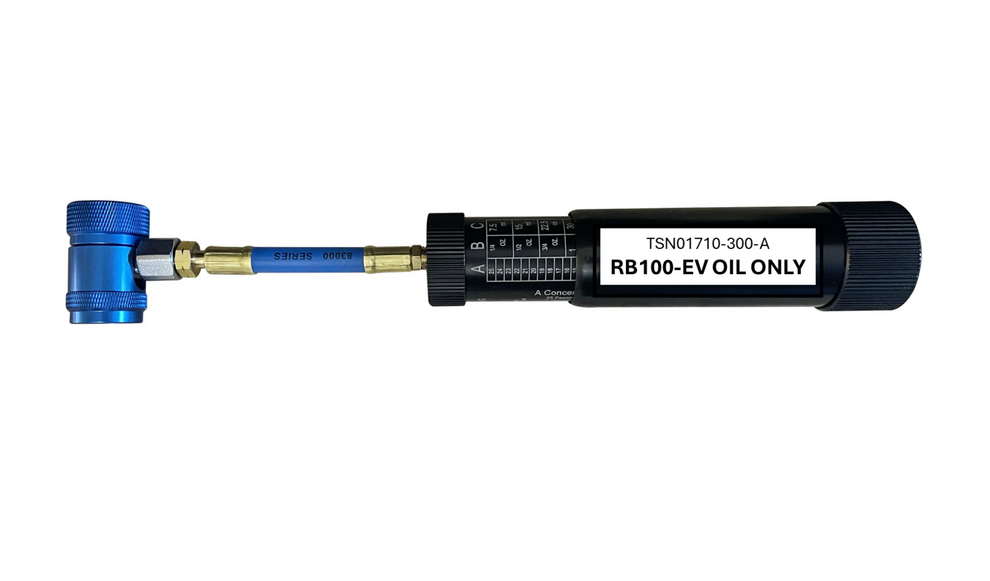

TSN01710-300-A Oil Injector 1234YF (RB100-EV only) Used to inject RB100-EV refrigerant oil into the AC system. Injector includes a clear identification label to prevent cross contamination. Snap-on Business Solutions 26 – Thermal Management Dedicated injector for RB100-EV refrigerant oil TSN01710-300-A

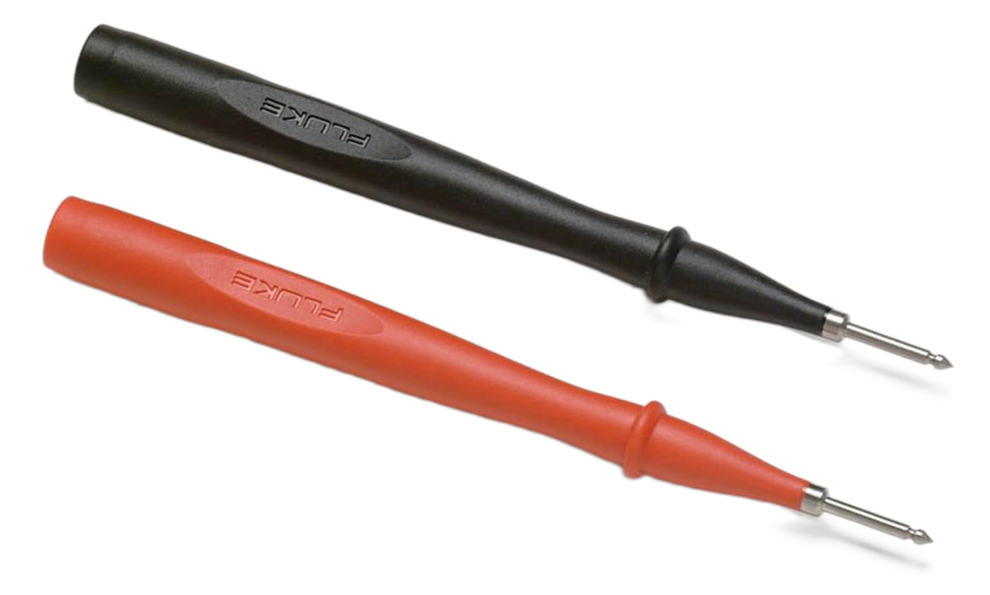

TSN01641-100-A Slim Reach Test Probes Used to check voltage through the Powerhouse access panel on MSP HV batteries Snap-on Business Solutions 30 – HV Battery Required TSN01641-100-A

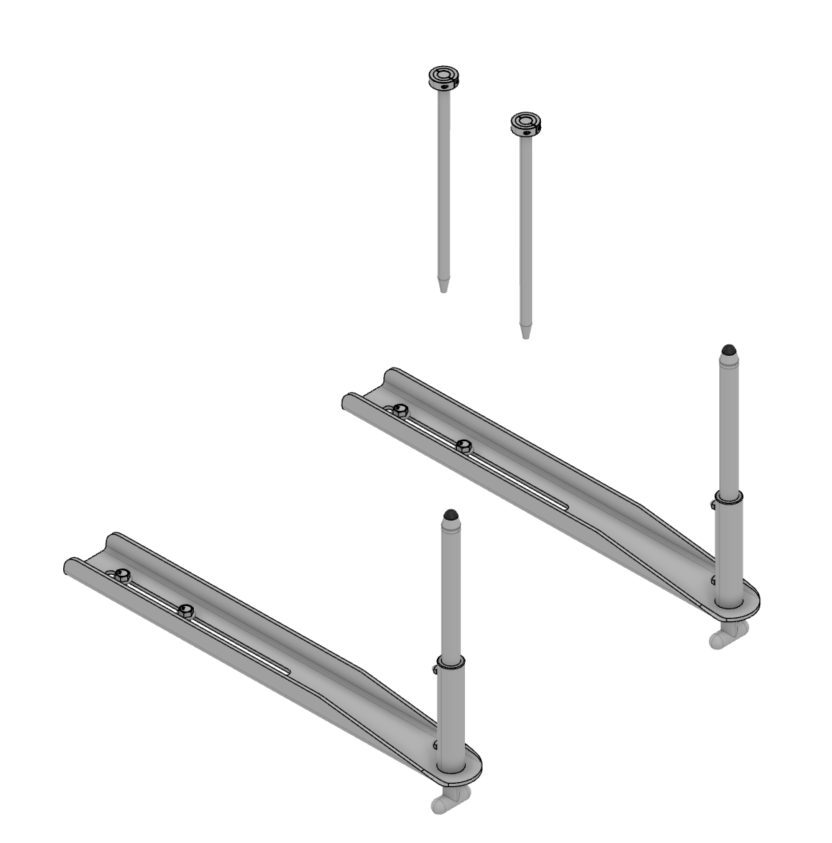

TSN01642-300-A HV Battery Guide Pin Kit – R2 Used to align the HV battery to the body during installation Snap-on Business Solutions 30 – HV Battery Required TSN01642-300-A

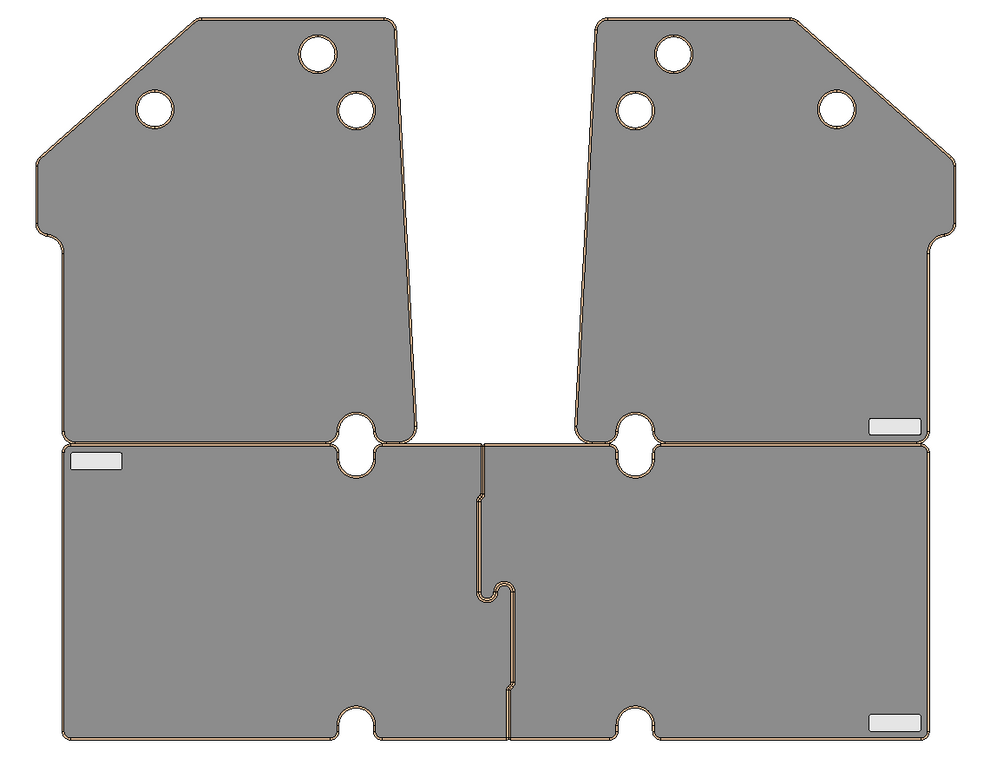

TSN01645-300-A Floor Protection Panels – R2 Protects the R2 HV battery during service when interior is removed Ultralight Plywood 30 – HV Battery Required TSN01645-300-A

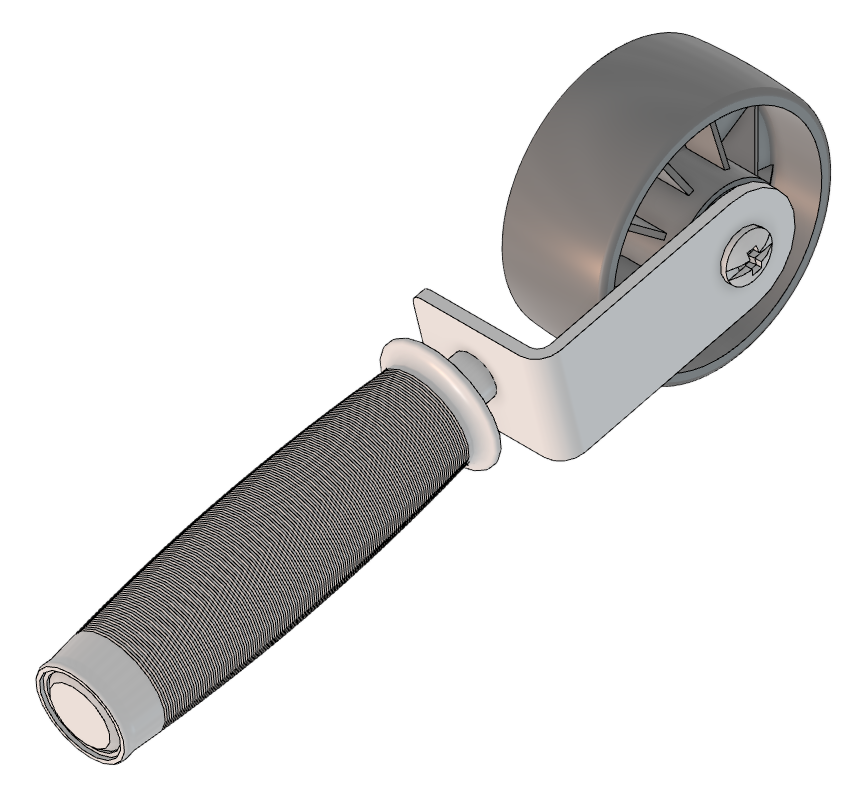

TSN01691-300-B Bulb Seal Roller Used to wet out adhesive-backed bulb seal on the R2 HV battery enclosure Snap-on Business Solutions 30 – HV Battery Required if Battery Bulb Seal Replacement is necessary TSN01691-300-B

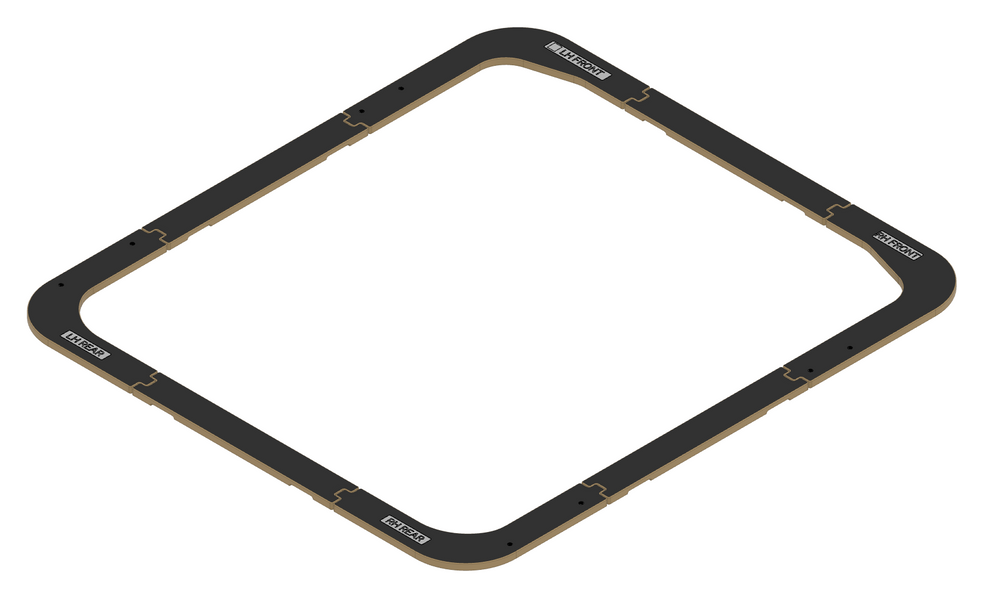

TSN01698-300-A R2 HV Battery Bulb Seal Install Template Used to locate the HV battery-to-body bulb seal on R2 vehicles Ultralight Plywood 30 – HV Battery Required if Battery Bulb Seal Replacement is necessary TSN01698-300-A

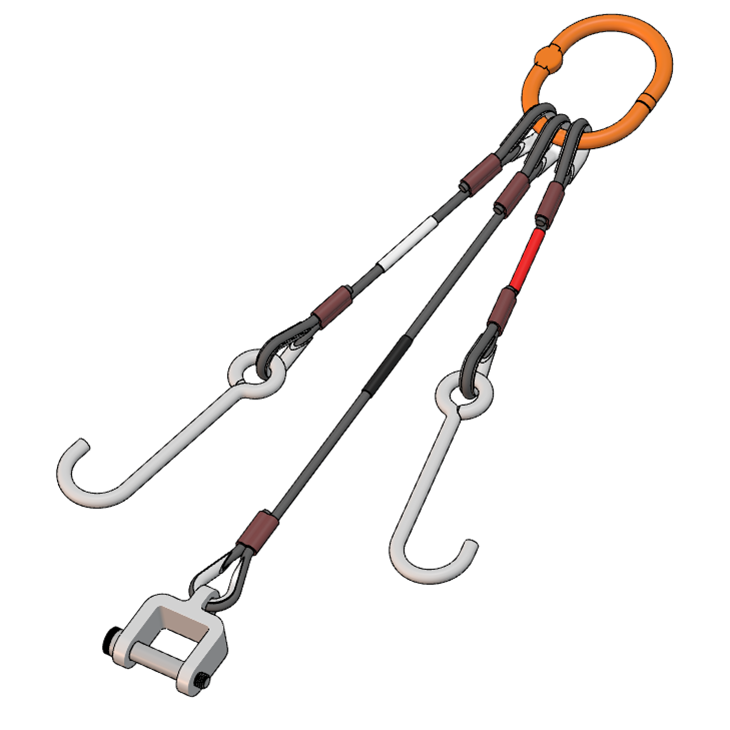

TSN01640-300-A Drive Unit Lift Sling – R2 Used to lift R2 front and rear drive units in and out of shipping crates and subframes Snap-on Business Solutions 38 – Front Drive Unit / 42 – Rear Drive Unit Required TSN01640-300-A

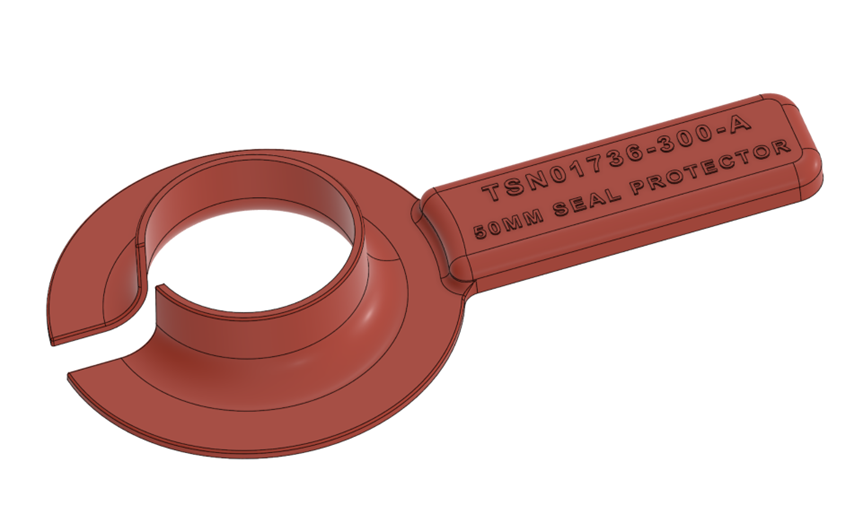

TSN01736-300-A Output Seal Protector Tool – 50mm Protects Enduro, Ascent, and Maximus output seals during halfshaft install Snap-on Business Solutions 38 – Front Drive Unit / 42 – Rear Drive Unit Required TSN01736-300-A

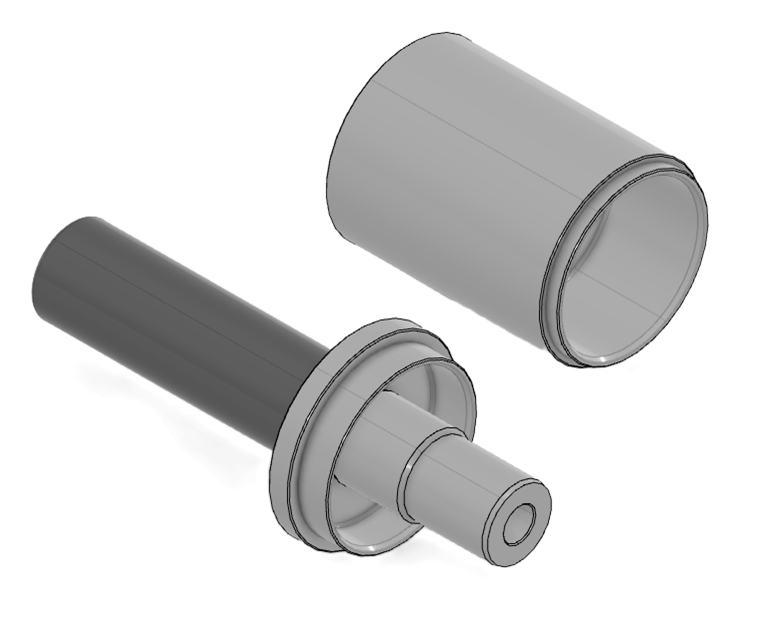

TSN01625-300-A Output Seal Installation Tool Kit – Maximus Used to install output seals in Maximus front and rear drive units Snap-on Business Solutions 38 – Front Drive Unit, 42 – Rear Drive Unit Required TSN01625-300-A

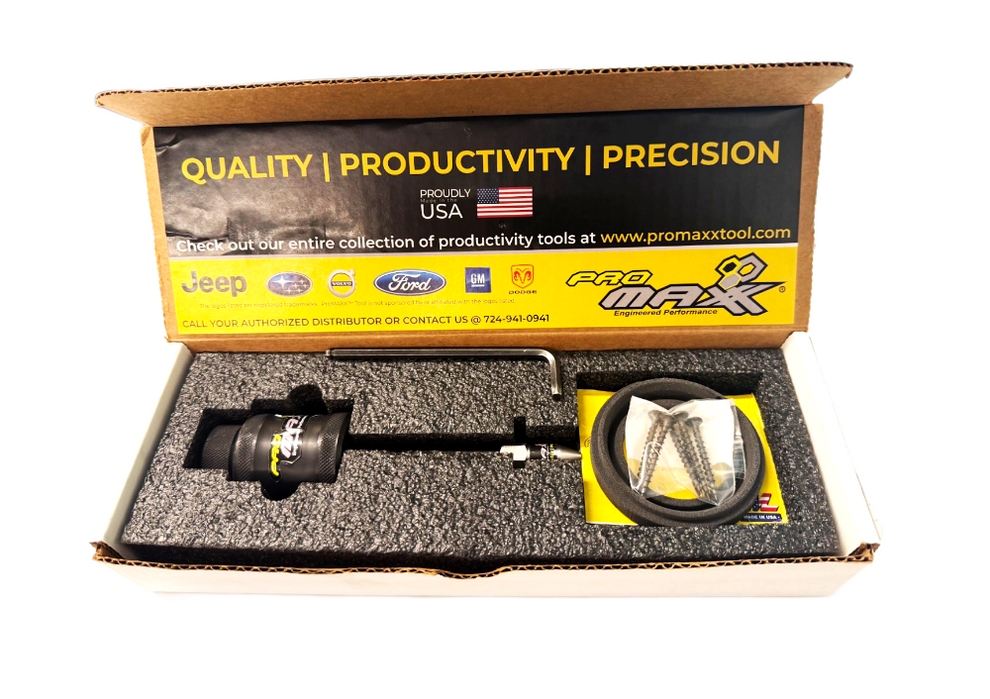

TSN01626-300-A Output Seal Removal Toolkit – Maximus Extractor kit to remove output seal on Maximus drive unit. Kit contents: slide hammer, alignment jig, drywall screws. Snap-on Business Solutions 38 – Front Drive Unit, 42 – Rear Drive Unit Required TSN01626-300-A

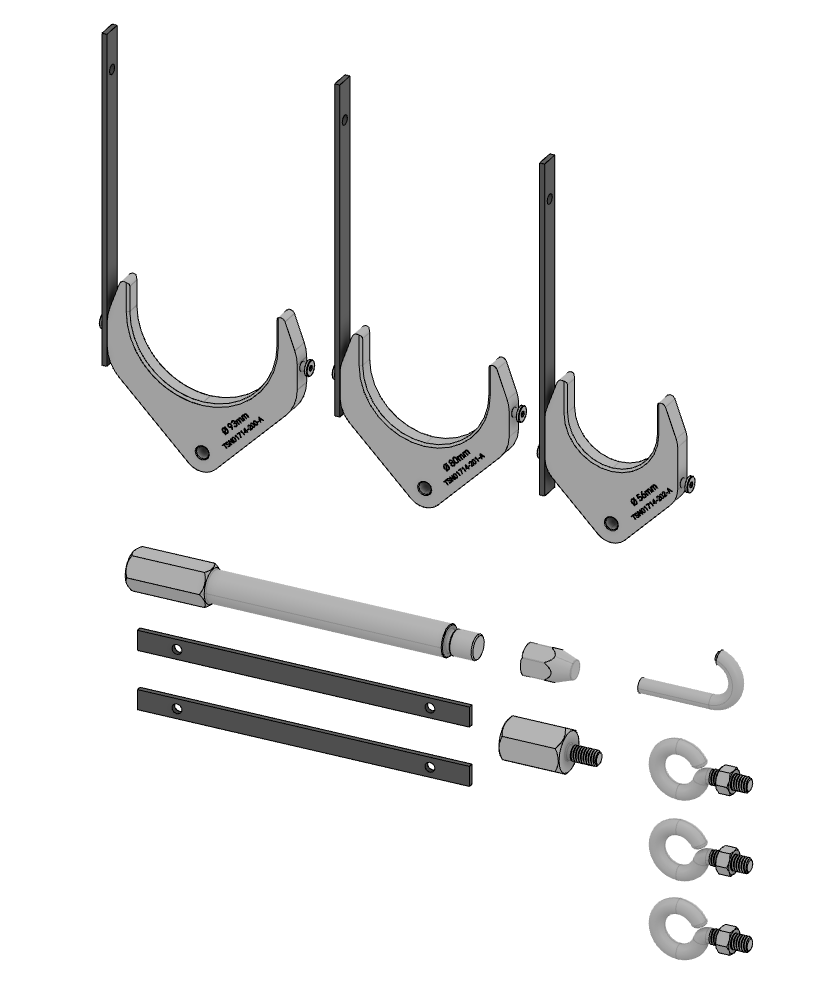

TSN01714-300-A Half Shaft Removal Kit Kit used to remove R2 front and rear half shafts Snap-on Business Solutions 38 – Front Drive Unit, 42 – Rear Drive Unit Required TSN01714-300-A

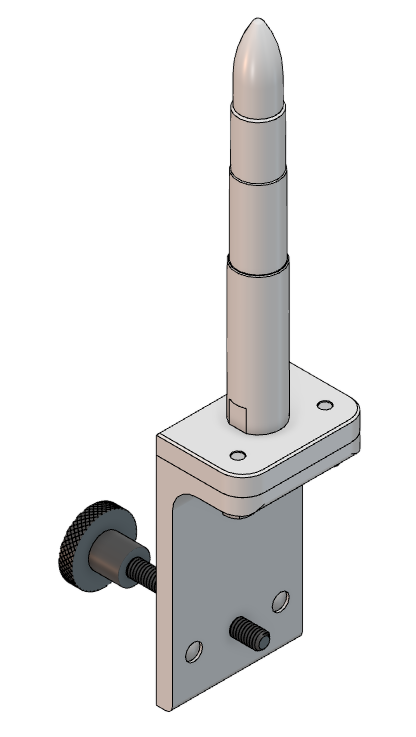

TSN00542-206-A Front Subframe Alignment Pin – R2 Used to locate the front subframe to the body during installation on R2 vehicles (qty. 2 required) Snap-on Business Solutions 46 – Frame

Required when upgrading an existing TSN00542-300-A through C revision.

This component (2x) comes standard with TSN00542-300-D.

 TSN00542-206-A
TSN01692-300-A Rear Subframe Guide Pin – R2 Used to pre-locate the rear subframe to the body during installation on R2 vehicles (qty. 2 required) Snap-on Business Solutions 46 – Frame Required TSN01692-300-A

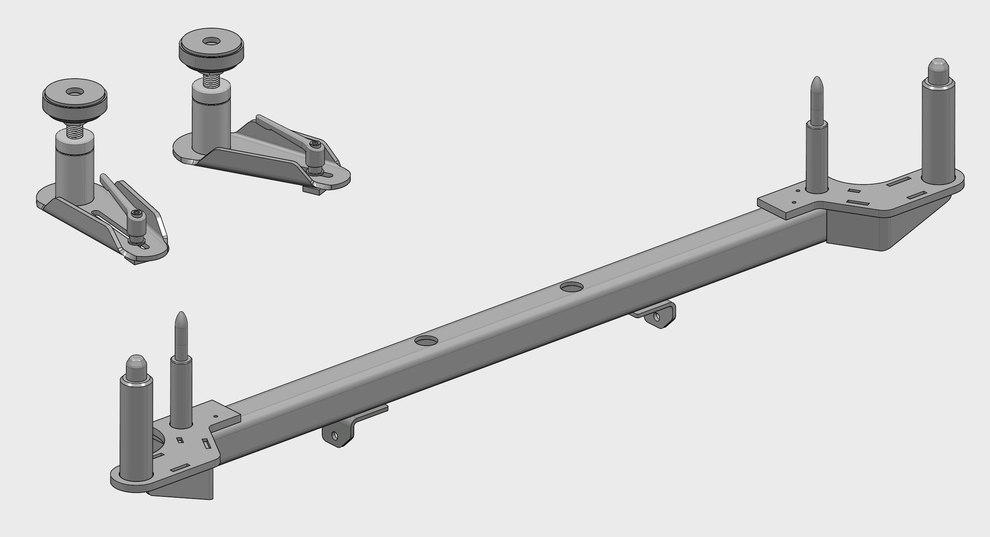

TSN01755-300-A Rear Subframe Locating Jig – R2 Used to align R2 rear subframe to body Snap-on Business Solutions 46 – Frame Required TSN01755-300-A

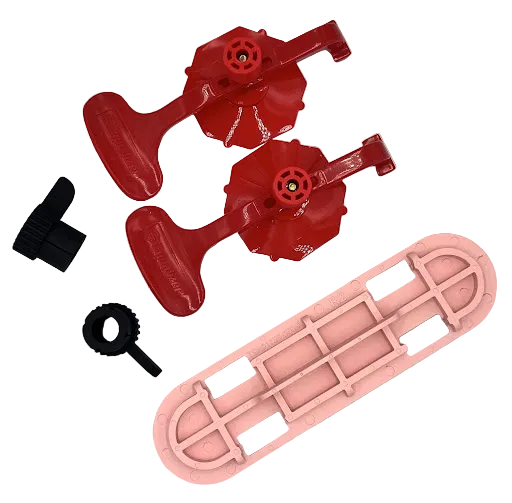

TSN01754-300-A Door Handle Adjustment Kit Used to set gap and flushness of R2 door handle to door skin Snap-on Business Solutions 56 – Closures Required TSN01754-300-A

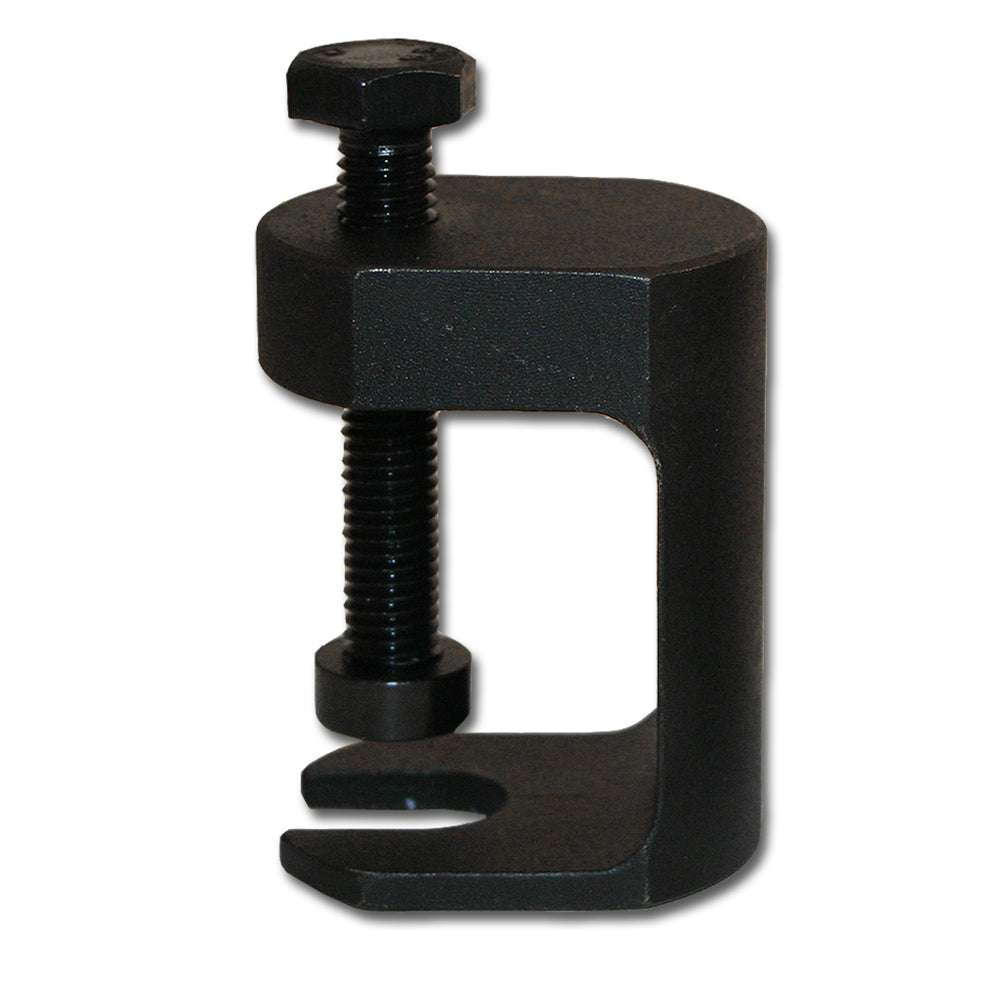

TSN00366-103-A Wiper Arm Removal Tool Pull bolted wiper arm from R2 Snap-on Business Solutions 60 – Exterior Attachments Recommended TSN00366-103-A

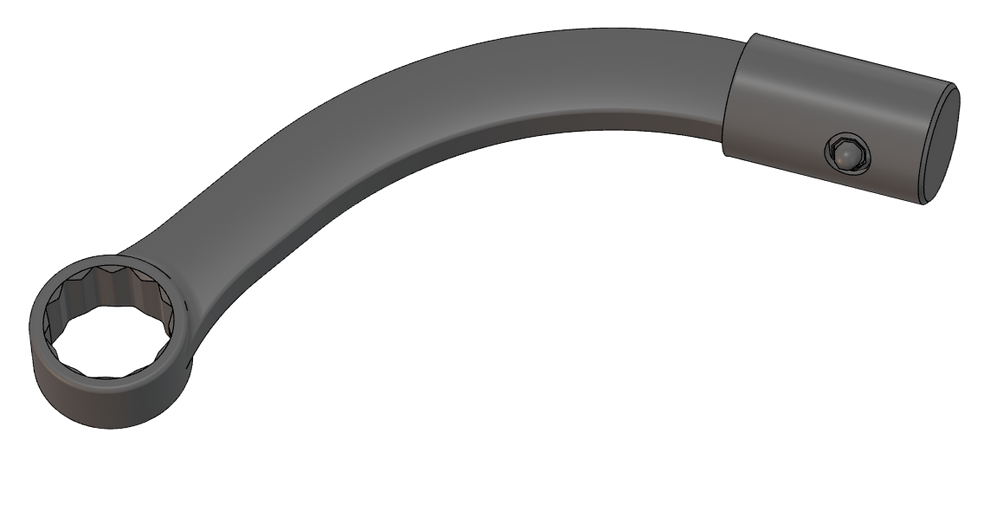

TSN01663-300-A Torque Wrench Adapter – 13mm Curved Box End, Y-Shank Used to torque R2 hinge bolts. Compatible with Y-shank torque body. Snap-on Business Solutions 60 – Exterior Attachments Required TSN01663-300-A

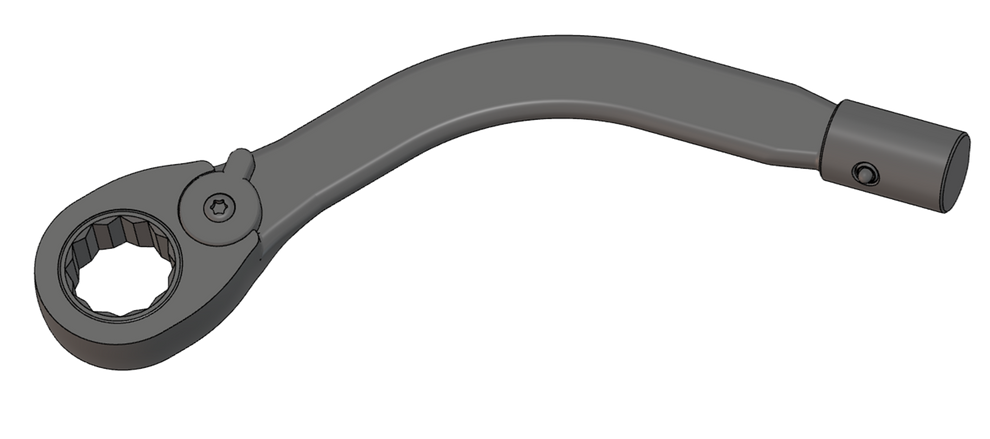

TSN01664-300-A Torque Wrench Adapter – 21mm Curved Ratcheting End, X-Shank Used to torque R2 sway bar links. Compatible with X-shank torque body. Snap-on Business Solutions 18 – Suspension Required TSN01664-300-A

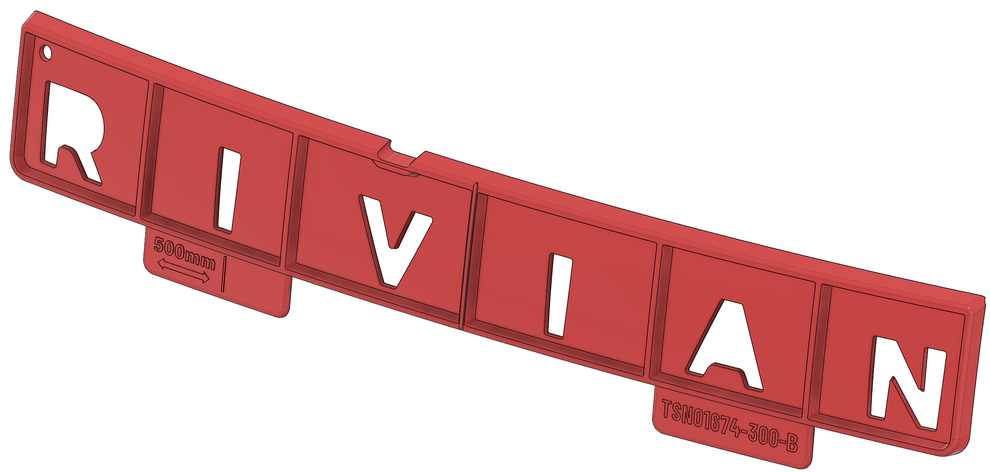

TSN01674-300-B R2 Liftgate Emblem Jig, "Rivian" Jig used to locate and install the "Rivian" badge on the R2 liftgate Snap-on Business Solutions 60 – Exterior Attachments Required TSN01674-300-B

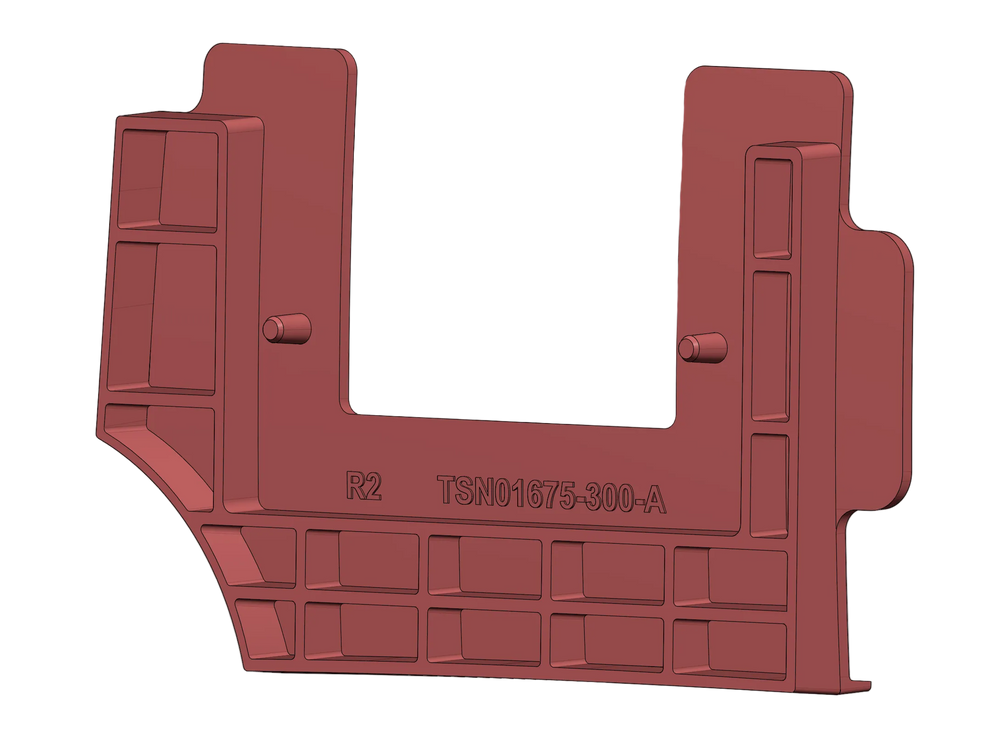

TSN01675-300-A R2 Liftgate Emblem Jig, "R2" Jig used to locate and install the "R2" badge on the R2 liftgate Snap-on Business Solutions 60 – Exterior Attachments Required TSN01675-300-A

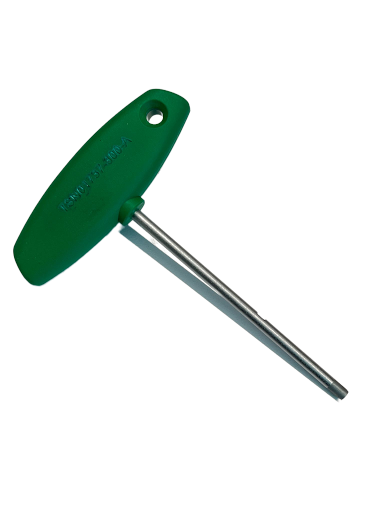

TSN01737-300-A Airbag Release Tool Used to release steering wheel airbag on R2 Snap-on Business Solutions 72 – Occupant Protection Required TSN01737-300-A

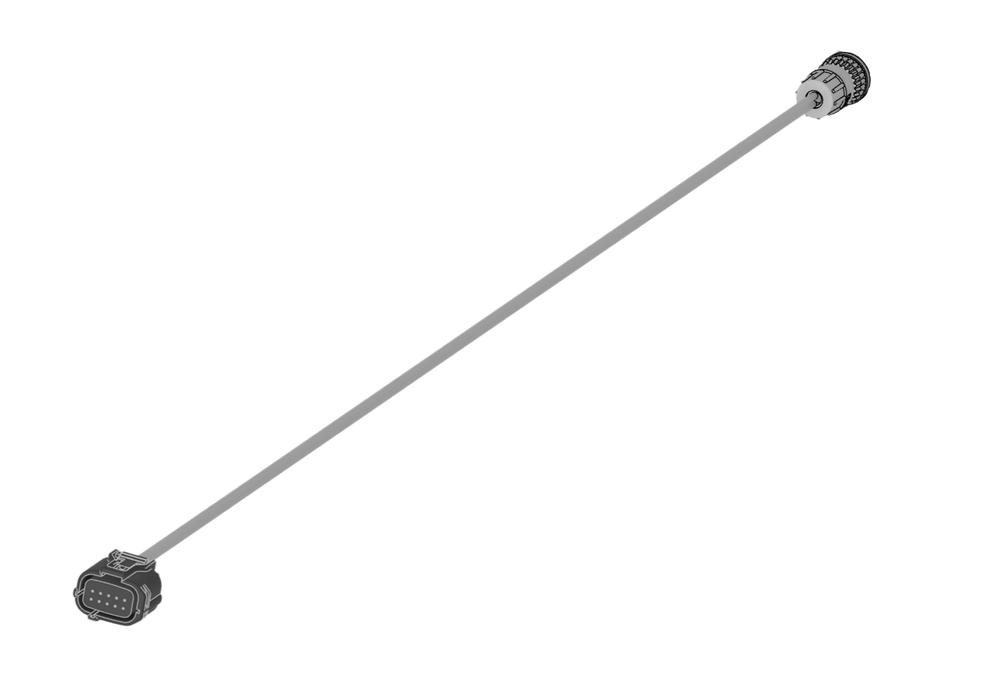

TSN01697-300-A R2 Exterior Door Handle – Adapter Harness Used to deploy and retract the R2 exterior door handle directly from the motor using an external 12V power supply Snap-on Business Solutions 78 – Low Voltage Electrical Recommended TSN01697-300-A

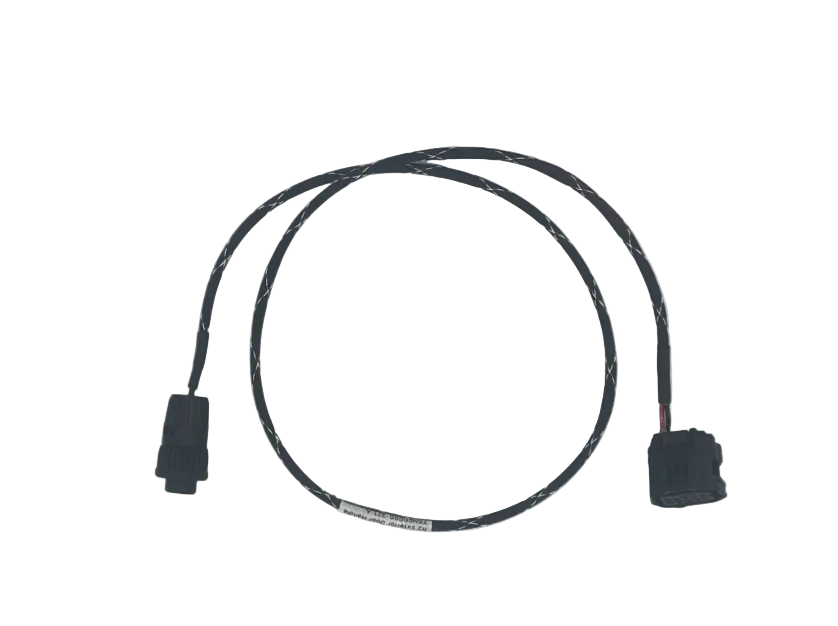

TSN01720-300-A R2 Window Regulator Adapter Harness Used to raise and lower the R2 window directly from the regulator motor using an external 12V power supply Snap-on Business Solutions 78 – Low Voltage Electrical Recommended TSN01720-300-A
