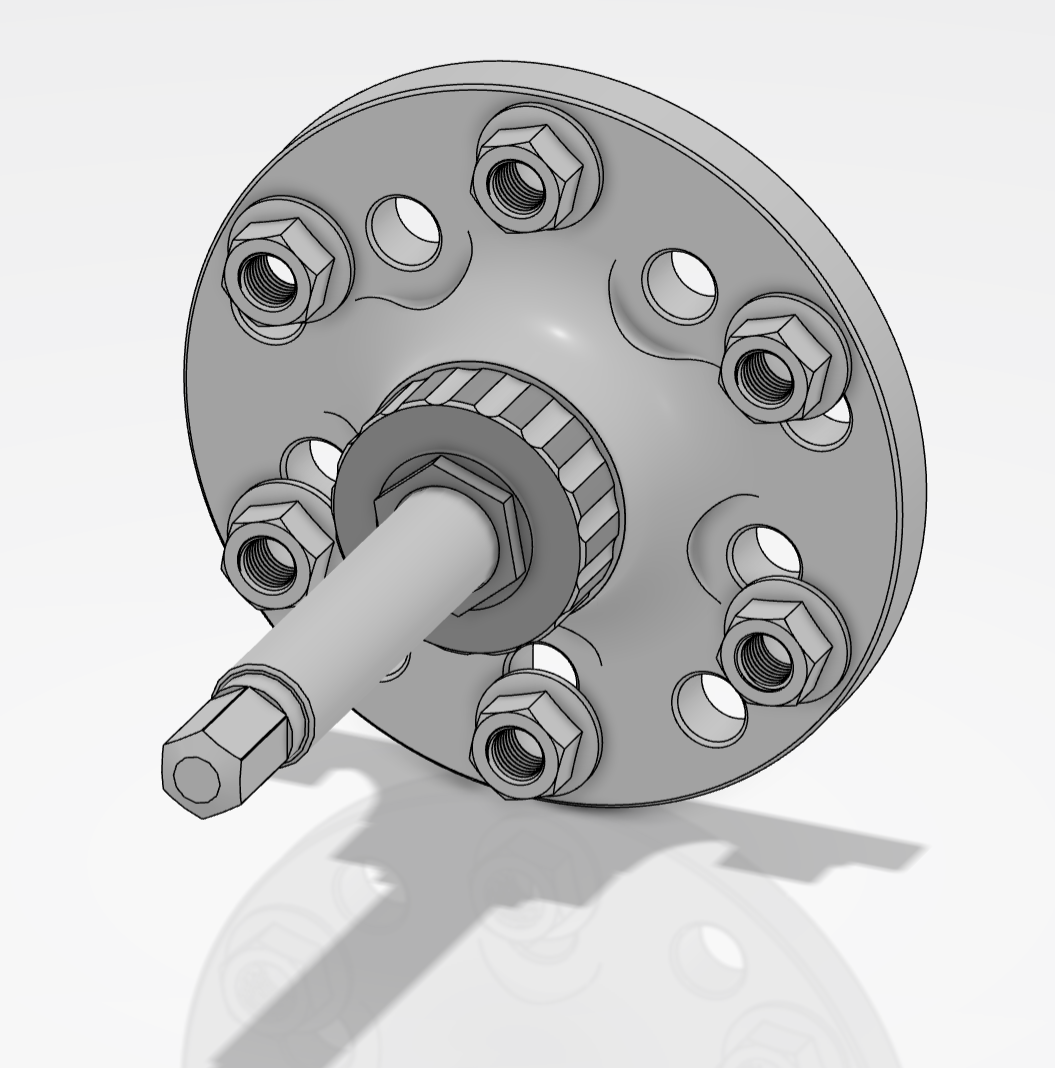

AXLE PRESS

AXLE PRESS


TOOL ID:

TSN00546-300-C

TOOL FUNCTION:

PRESS AXLES OUT OF HUBS

REVISION NOTE: FOR REVISION TSN00546-300-B, SEE TOOL CHANGE ORDER SECTION.  TCO KIT,  TSN00546-900-C IS AN ADHESIVE BACKED SHIM THAT UPDATES  -B TO -C REVISION.

MFG:

AGA

MFG P/N:

NCT05079228

Replacement Parts:

TSN00546-200-A

Threaded Axle Press Adapter

TSN00546-201-A

Forcing Tip Assy

TSN00546-202-A

Forcing Screw
Reach out to servicetoolengineering@rivian.com for replacement components.

TOOL DOCUMENTS

Tool Usage Instructions
Tool Change Order
Axle & Hub
