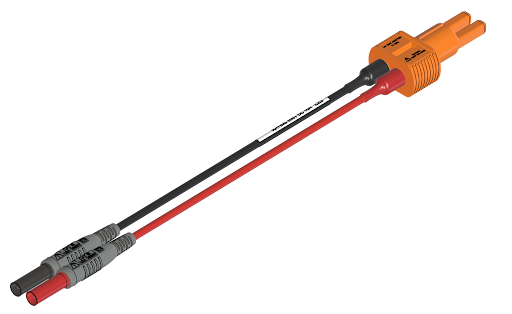

HV TEST ADAPTER TOOL C1/BENGAL ESS

TOOL FUNCTION:

TO VERIFY THE HV BATTTERY STATE PRIOR TO PERFORMING SERVICE PROCEDURES. TOOL INTERFACES TO THE NEW C1 HV BATTERY PACKS (COMBINATION BREATHER PORT/SPARE HEADER) AND INSULATION METER. TOOL IS ALSO BACKWARDS COMPATIBLE WITH PACKS CONTAINING DEDICATED SPARE HEADERS.

MFG:

CAL TEST

MFG P/N:

CT4531

Applicable Vehicle Programs:

-R1’s with NCA (C1) packs that have a spare HV header (prior to 2024)

-R1's with NCA (C1) packs that have a combo breather/spare HV header (2024)

-EDV's with NCA (C1) packs that have a spare HV header (prior to 2024)

-EDV's with LFP (Bengal) packs that have a spare HV header (2024+)
